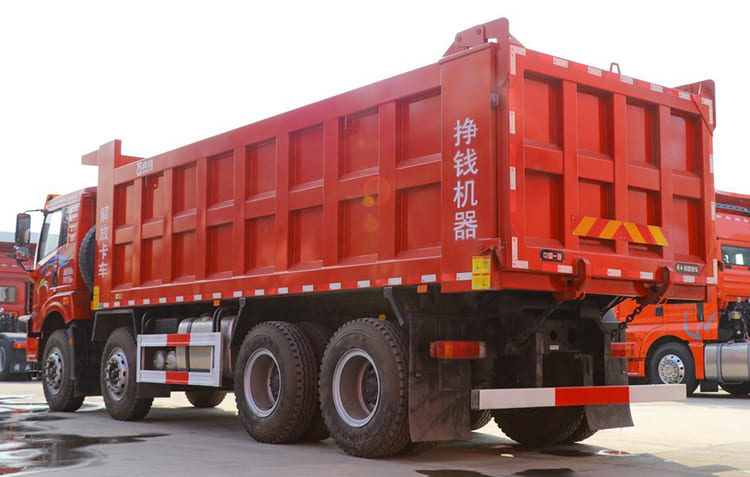

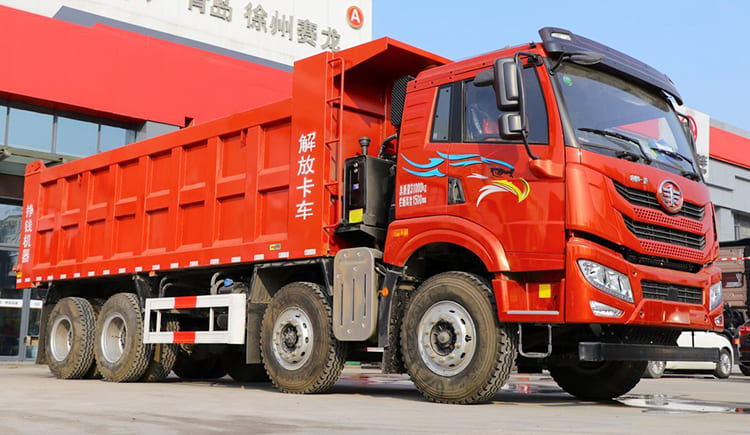

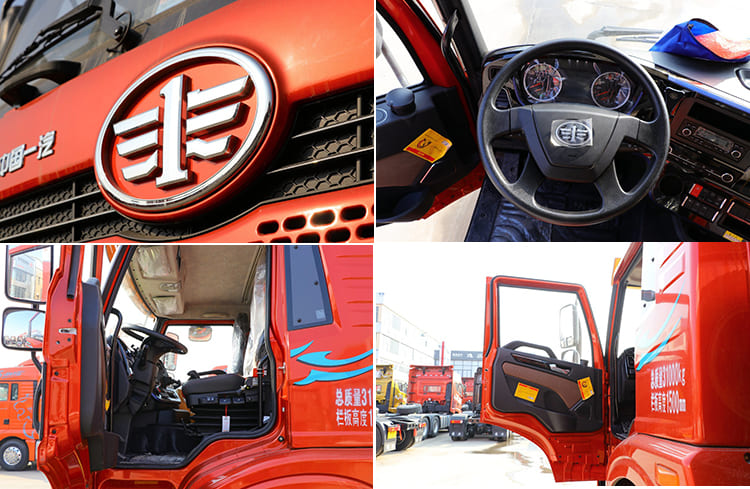

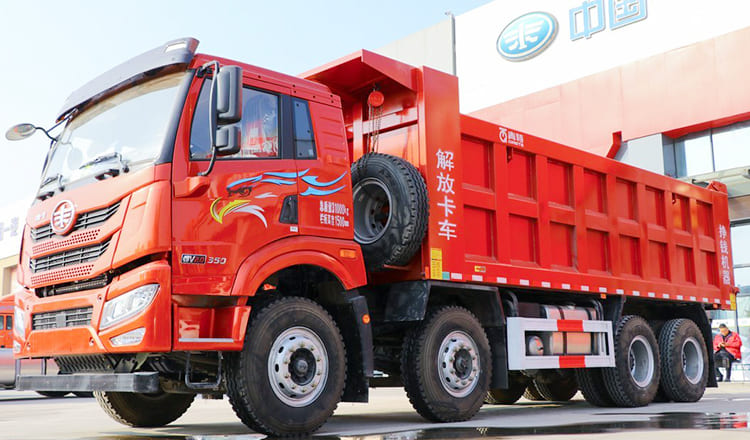

Faw JH5 8X4 Tipper Price

Drive form: 8X4

Wheelbase: 1900+3200+1350mm

Overall Dimension(mm): 9660x2550x3250

Front Track: 2020/2020mm

Rear Track: 1878/1878mm

Vehicle weight: 14.62 tons

Rated load: 16.25 tons

Total mass: 31 tons faw tipper price in kenya

Approach angle: 25 degrees

Departure angle: 37 degrees

Engine

Engine model: Weichai WP8.350E61

Number of cylinders: 6

Fuel Type: Diesel

Displacement: 7.8L faw tipper price in kenya

Maximum horsepower: 350 horsepower

Maximum output power: 257kW

Maximum torque: 1400N m

Maximum torque speed: 1200-1600rpm

Rated speed: 2100rpm faw tipper price in kenya

Engine form: in-line six-cylinder, water-cooled, four-stroke, high-pressure common rail, supercharged and intercooled, EGR

Cargo box

Cargo box length: 6.5 meters

Container width: 2.35 meters

Cargo height: 1.5 meters

Cargo box form: rear flip self-unloading

Gearbox

Gearbox model: FAW Jiefang CA10TAX130M

Forward gear: 10th gear

Number of reverse gears: 2

Fuel tank

Fuel tank capacity: 300L
